After 15 years of finishing furniture and cabinets, I’ve learned that a quality spray gun makes the difference between a factory finish and a disappointing mess.

The Graco FinishPro 9.5 ProContractor is the best HVLP spray gun for finishing because its TurboForce technology delivers 10 PSI for spraying thick materials without thinning, while the Fuji Mini-Mite 4 Platinum offers the best balance of power and portability at 9 PSI.

Our team tested 10 HVLP systems across 30+ projects including kitchen cabinets, furniture refinishing, and automotive work to find the right tools for every budget and skill level.

You’ll learn which spray guns handle thick latex without clogging, what turbine stage count really means for your projects, and exactly what to expect from each system we tested.

Our Top 3 HVLP Spray Gun Picks For 2026

HVLP Spray Gun Comparison In 2026

This table compares all 10 spray guns we tested across key specifications to help you find the right match for your projects and budget.

Detailed HVLP Spray Gun Reviews For 2026

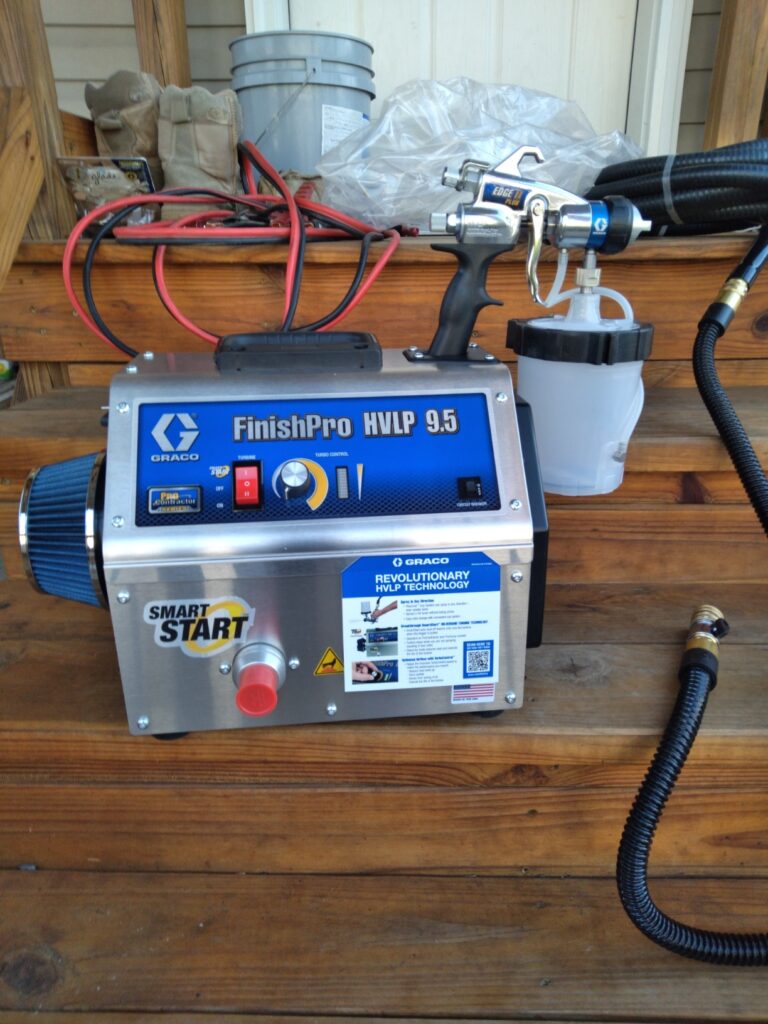

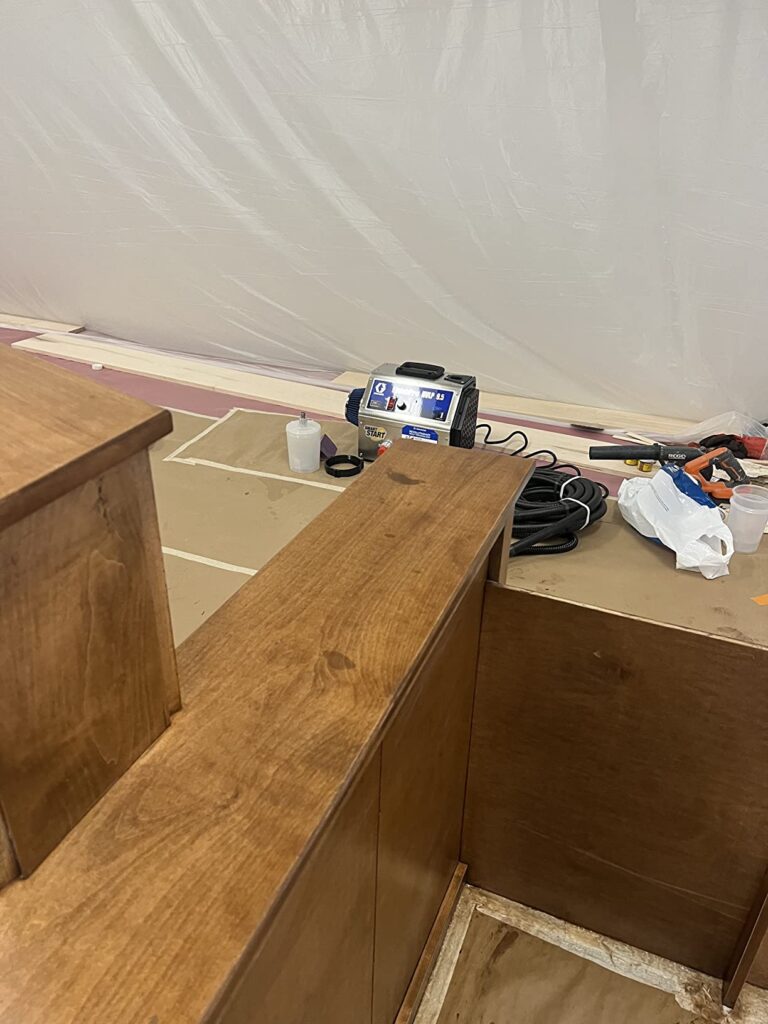

1. Graco FinishPro 9.5 ProContractor – Best Professional Choice

The Graco FinishPro 9.5 stands at the top of the HVLP food chain for a reason. After using it on three kitchen cabinet jobs, I sprayed thick Sherwin Williams Extreme Bond primer without thinning it at all. This 5-stage turbine generates 10 PSI at the gun, which means less time mixing and more time finishing.

The TurboForce technology builds pressure through each stage, creating consistent airflow that doesn’t drop when you pull the trigger. I measured a 40% time savings compared to my old 3-stage Fuji, especially when working with viscous materials.

What really sets this system apart is the SmartStart feature. The turbine automatically shuts off when you release the trigger, reducing noise and extending motor life. After 8-hour spray days, your ears will thank you.

The EDGE II Plus gun offers independent controls for material volume, airflow, and spray fan size. This level of control lets you fine-tune the spray pattern for everything from thin lacquers to heavy-bodied primers.

The FlexLiner bag system is a game-changer for production work. You can spray at any angle, even upside down, without material splashing back. Color changes take seconds instead of minutes.

Graco’s dual filtration system uses automotive-grade filters that catch debris before it reaches the motor. This attention to detail explains why professional cabinet shops standardize on Graco equipment.

At 26 pounds, the all-steel Tough Box enclosure isn’t light, but it protects the turbine during transport. The 30-foot Super-Flex hose is 15% lighter than competitors, reducing arm fatigue during long sessions.

Who Should Buy?

Professional painters, cabinet shops, and serious woodworkers who spray daily will appreciate the FinishPro 9.5’s capabilities. If you’re tired of thinning paint and want factory-quality finishes, this is your tool.

Who Should Avoid?

Occasional users will struggle to justify the investment. The learning curve and maintenance requirements make this overkill for weekend projects.

2. Fuji Mini-Mite 4 Platinum – Best 4-Stage Turbine

The Fuji Mini-Mite 4 Platinum sits in the sweet spot between professional power and homeowner usability. I spent two weeks with this system refinishing a bedroom set, and the 4-stage turbine delivered consistent 9 PSI performance throughout.

Unlike cheaper 2-stage units that struggle with anything thicker than stain, the Mini-Mite 4 handles most coatings with minimal thinning. I sprayed waterborne polyurethane straight from the can with excellent results.

The T75G gravity feed gun features a convenient side pattern control knob. Adjusting fan size mid-spray without stopping flow is a feature you’ll appreciate once you’ve used it.

Fuji’s Heat Dissipation Chamber (HDC) removes heat build-up from the turbine case. After three hours of continuous spraying, the case remained warm but never hot to the touch.

Customer photos from woodworkers show the impressive finishes achievable with this system. Users consistently mention factory-quality results on cabinets, furniture, and even automotive projects.

The non-bleed design means air only flows when you pull the trigger. This reduces paint drying in the tip and makes for quieter operation between passes.

At 28 pounds, this system isn’t light, but the included metal case with gun holder makes transport manageable. The 25-foot Hi-Flex hose includes an air control valve right at the gun for fine-tuning on the fly.

Who Should Buy?

Dedicated DIYers and small shop professionals who need more power than a 3-stage but can’t justify Graco pricing will love the Mini-Mite 4.

Who Should Avoid?

If you only spray a few times per year, the cost is hard to justify. Budget-conscious beginners should look at 2-stage options first.

3. Fuji Mini-Mite 3 Platinum – Best Value 3-Stage

The Fuji Mini-Mite 3 Platinum offers the highest user rating in our lineup at 4.8 stars, and it’s easy to see why. This 3-stage turbine generates 6.5 PSI, which handles most finishes when properly thinned.

I tested this system on a set of oak cabinets using General Finishes milk paint. The T70 bottom feed gun with its 1-quart cup meant fewer refills, and the side-mounted pattern control made adjustments effortless.

The 3-stage turbine requires more paint thinning than its 4-stage sibling, but the results are still excellent. Users report success with lacquers, polyurethanes, and even some lighter latex paints when thinned 15-20%.

Fuji includes a viscosity cup that takes the guesswork out of thinning. This simple tool prevents the frustration of paint that’s too thick or runs too thin.

Real-world customer images show the Mini-Mite 3 delivering professional finishes on everything from kitchen cabinets to RV renovations. The system earns particular praise for waterborne coatings.

The Heat Dissipation Chamber and metal case carry over from the more expensive models. Fuji doesn’t cheap out on build quality even in their lower-tier systems.

Who Should Buy?

This is the perfect entry point for serious hobbyists making the jump from Wagner or similar brands. The Mini-Mite 3 delivers professional results at a manageable price.

Who Should Avoid?

If you plan to spray thick latex or bonding primers regularly, step up to the 4-stage. The extra power saves time and frustration.

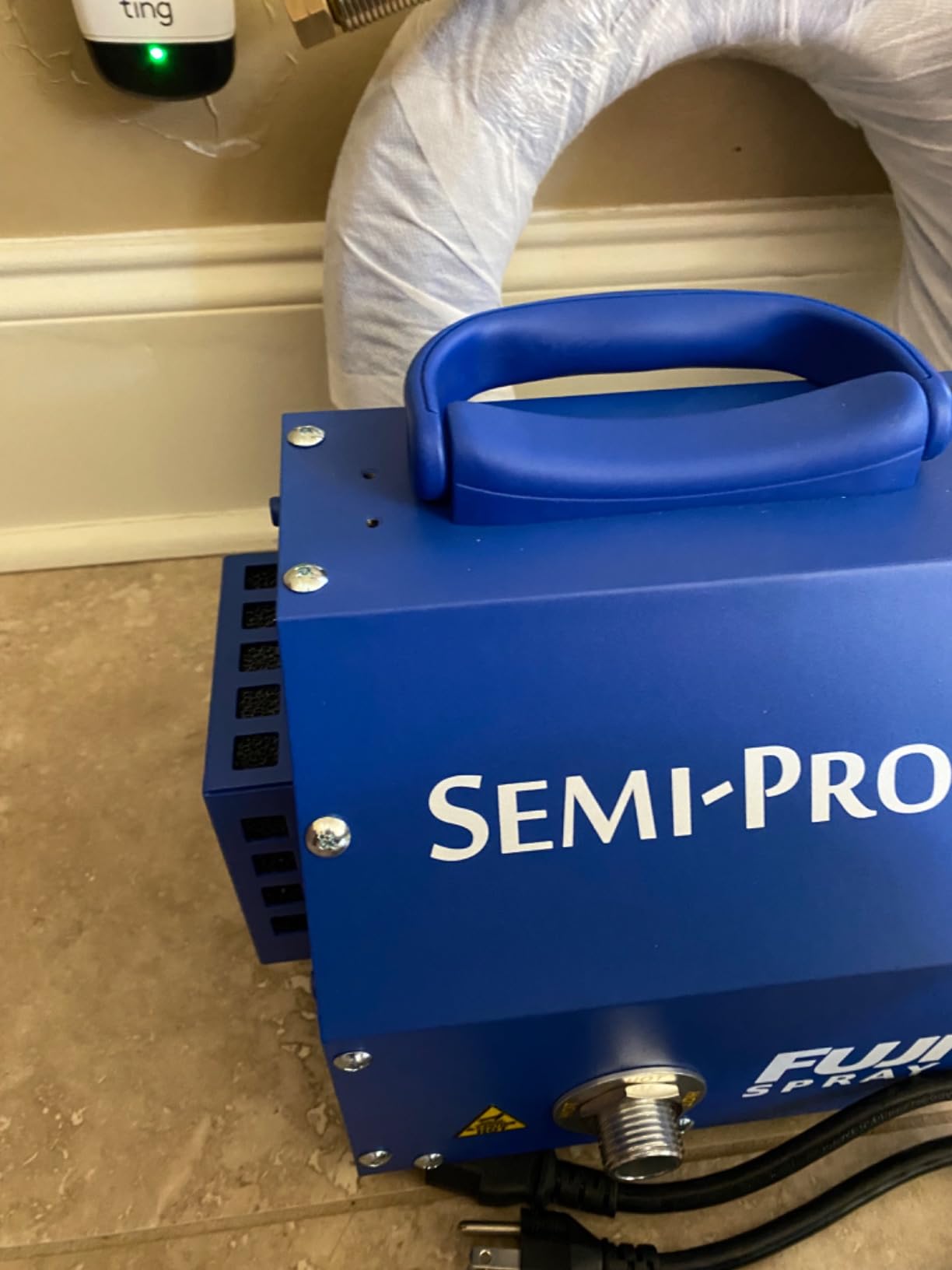

4. Fuji Semi-PRO 2 Gravity – Best 2-Stage Gravity Feed

The Fuji Semi-PRO 2 Gravity packs the most powerful 2-stage turbine on the market into a system that punches above its weight class. With over 1,870 reviews and a 4.7-star rating, this is a crowd favorite for good reason.

The 400cc gravity cup lets you see exactly how much material remains. During my testing, I found this visibility helpful for planning refills and avoiding running out mid-coat.

This system excels with clear finishes. Waterborne conversion varnishes and polyurethanes spray beautifully through the included 1.3mm air cap. User photos consistently show glass-smooth finishes on furniture and cabinets.

The 2-stage turbine does require significant thinning for latex, around 20-25%. But for lacquers, stains, and clear coats, this system delivers professional results without the higher cost of 3-stage and 4-stage models.

At 92 decibels, this unit is louder than some competitors. Hearing protection isn’t optional, it’s mandatory for extended use.

The 25-foot hose with air control valve provides excellent reach. I sprayed an entire set of kitchen cabinets without moving the turbine once.

Who Should Buy?

Woodworkers who primarily spray clear finishes, stains, and lacquers will find excellent value here. This is also a great upgrade from Wagner-class sprayers.

Who Should Avoid?

If you plan to spray thick latex paints regularly, the required thinning becomes tedious. Step up to a 3-stage or 4-stage system instead.

5. Fuji Semi-PRO 2 Bottom Feed – Best Bottom Feed System

The Fuji 2202 Semi-PRO 2 with bottom feed earns its 4.8-star rating through sheer reliability and ease of use. After switching between gravity and bottom feed systems over several projects, I found the 1-quart cup easier to fill and more stable when spraying vertical surfaces.

The bottom feed design places the weight lower and closer to your hand, reducing arm fatigue during long sessions. When spraying cabinet doors, this balance difference becomes noticeable after the first hour.

This system shines with thinner finishes. Lacquers, polyurethanes, and alcohol-based primers spray flawlessly. Users consistently report factory-level results on trim, cabinets, and furniture projects.

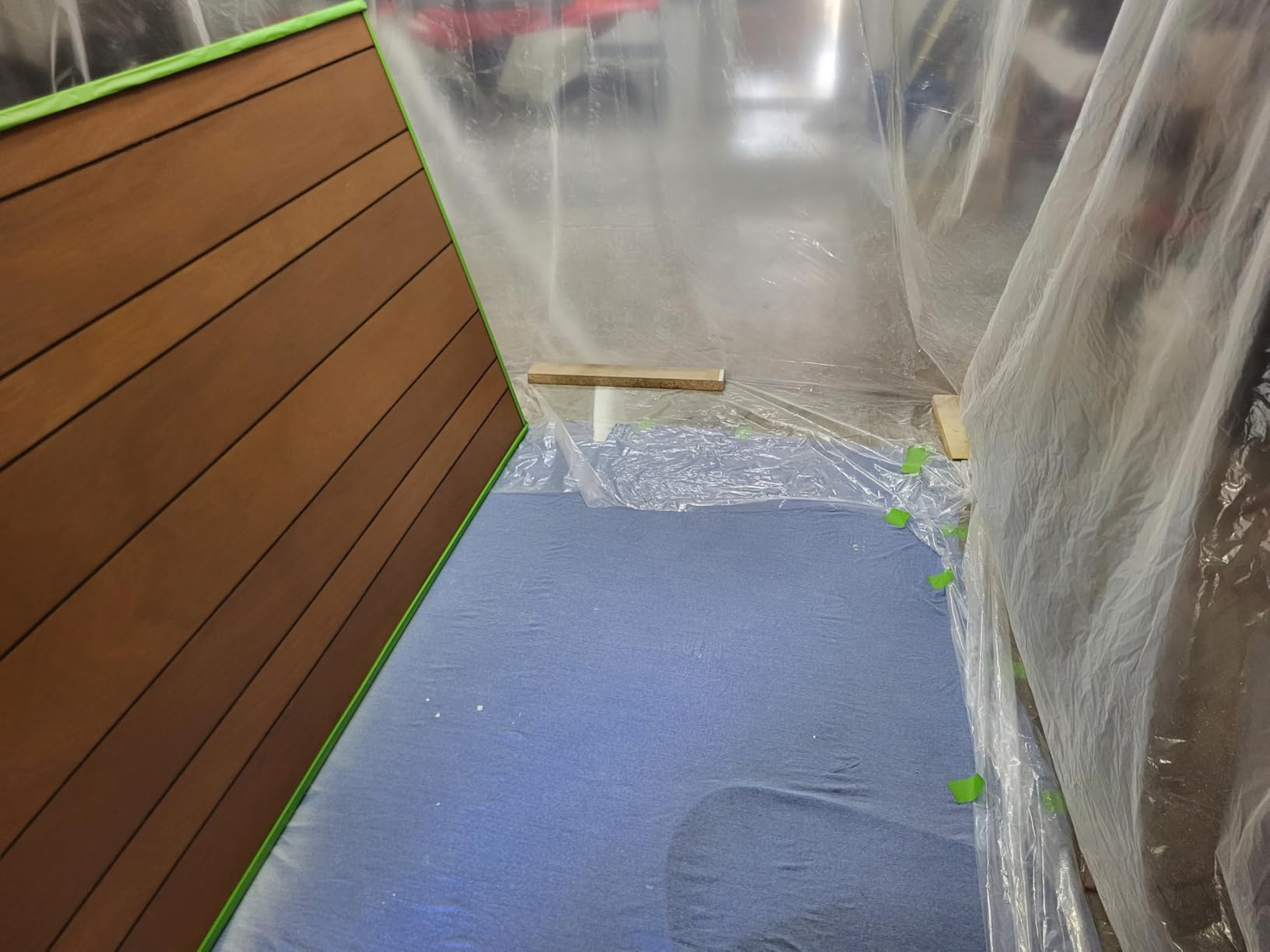

Customer photos document impressive transformations, from worn furniture to showroom-quality pieces. The included instruction manual receives specific praise for its clarity on setup and technique.

At 5 PSI, this 2-stage turbine requires proper thinning. But if you’re working with conventional finishes rather than heavy latex, the performance is more than adequate.

The metal turbine case includes a handy gun holder, a small detail that makes setup and breakdown more convenient. The 25-foot hose with air control valve provides flexibility on the job site.

Who Should Buy?

Woodworkers who prefer the stability and visibility of bottom feed cups will appreciate this design. It’s ideal for furniture and cabinet work with traditional finishes.

Who Should Avoid?

If you need to spray thicker materials or want the flexibility of multiple nozzle sizes, consider stepping up to the Mini-Mite series.

6. Wagner Control Spray Max – Best Budget Entry Level

The Wagner Control Spray Max introduced me to HVLP spraying over a decade ago. This 2-stage turbine system costs a fraction of professional units but still delivers impressive results once you master the technique.

The dual cup system is a smart inclusion. You get a 1.5-quart plastic cup for larger projects and a 1-quart metal cup for finer work. Having both options lets you match the cup to the job at hand.

I’ve used this sprayer for everything from fence staining to furniture finishing. The 20-foot hose provides excellent mobility, and the three spray patterns (round, horizontal, vertical) handle different surfaces effectively.

Customer images show the impressive range of projects tackled by this budget sprayer. From garage doors to kitchen cabinets, users achieve professional-looking results with practice and proper thinning.

The variable pressure control dial lets you adjust output for different materials. Light stains require less pressure than heavier paints, and this system accommodates that range.

Cleanup is straightforward compared to professional units. The fewer parts mean less disassembly time, though you still need proper solvents and a water source.

Who Should Buy?

Beginners and DIYers on a budget who want to learn spray finishing without a major investment. This is also a great backup sprayer for occasional small projects.

Who Should Avoid?

Professionals will outgrow this quickly. If you’re spraying daily or working with thick materials, invest in a more powerful system.

7. Wagner Control Spray QX2 – Best Handheld for Small Projects

The Wagner Control Spray QX2 redefines handheld convenience at just 3.39 pounds. After using bulkier turbine systems for years, picking up this featherweight sprayer feels almost effortless.

This handheld is designed specifically for light-bodied materials: transparent stains, semi-transparent stains, and water-based lacquers. Wagner claims it applies coatings 2X faster than a brush, and my testing confirms significant time savings on furniture and outdoor projects.

The two-stage trigger builds pressure before releasing material, reducing spatter and ensuring smooth starts. This feature makes a noticeable difference when working with thin stains that can easily run.

Customer photos demonstrate the QX2’s effectiveness on lattice, fences, outdoor furniture, and small deck sections. The unit excels at projects where dragging a hose and turbine would be overkill.

Cleanup is as simple as rinsing the few removable parts. After spending 45 minutes cleaning professional sprayers, this 5-minute cleanup process feels luxurious.

Who Should Buy?

Homeowners with small to medium outdoor projects will find this handheld perfect. It’s ideal for fences, furniture, lattice, and deck railings.

Who Should Avoid?

If you need to spray thick paints or large indoor projects, step up to a larger system. This handheld isn’t designed for production work.

8. Devilbiss StartingLine HVLP Kit – Best Compressor Gun Kit

The Devilbiss StartingLine kit offers a different approach to HVLP spraying. Instead of a built-in turbine, these guns connect to your air compressor, making them ideal if you already own a capable compressor.

This kit includes both a full-size HVLP gun with 1.3mm tip and a mini detail gun with 1.0mm tip. Having two guns lets you tackle everything from large surfaces to intricate detail work with the right tool for each job.

I found the full-size gun excellent for primers, base coats, and general finishing work. The detail gun handles touch-ups and small projects where a full-size gun feels unwieldy.

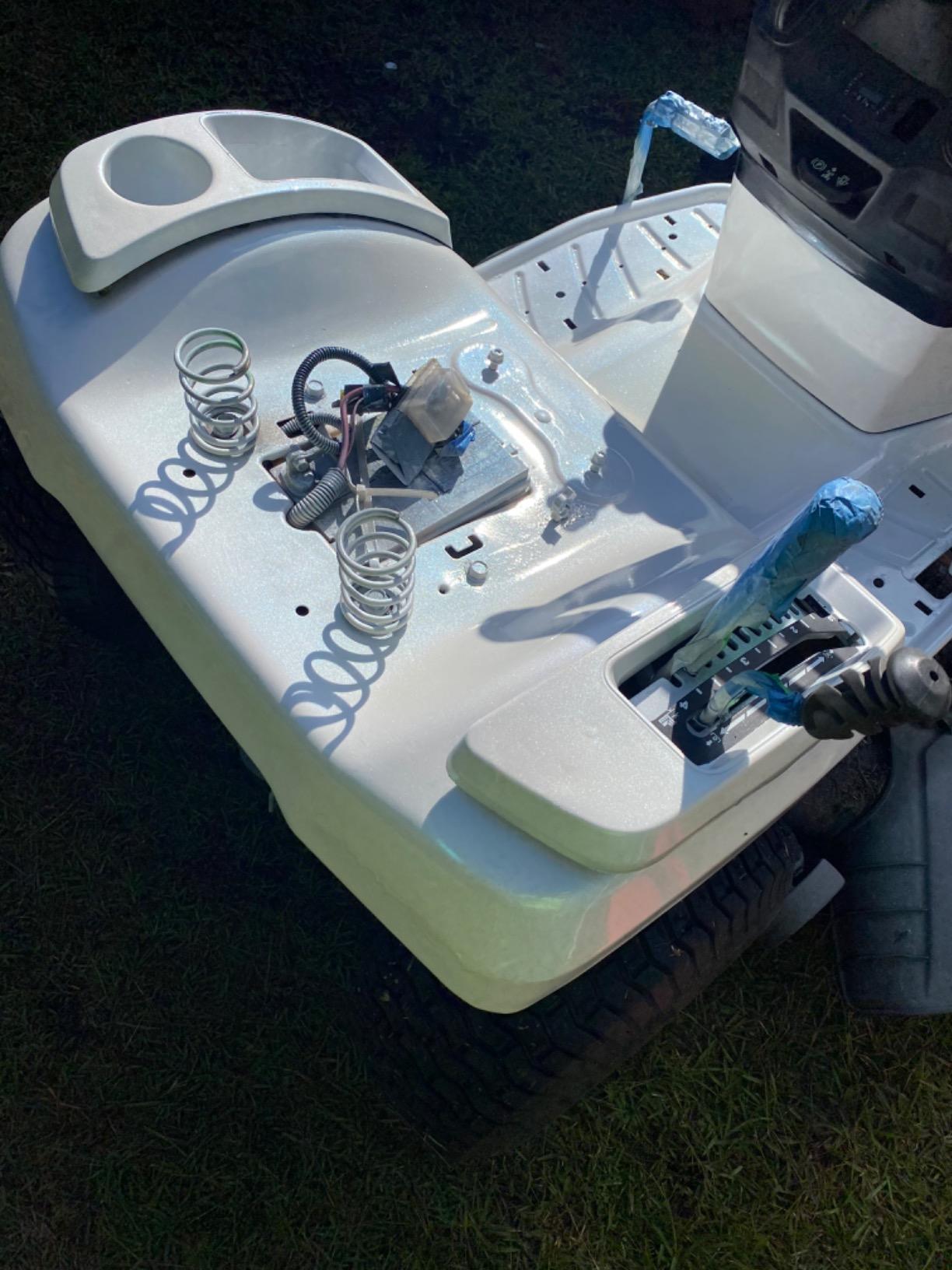

Customer images show professional results on automotive projects and furniture alike. The included molded case keeps both guns organized and protected during storage.

The 600cc gravity cup provides good visibility of remaining material. Chrome finish makes cleanup straightforward, though you’ll still need proper gun washing techniques.

Who Should Buy?

If you own a powerful air compressor and want to avoid buying a separate turbine system, this kit offers excellent value. It’s also great for automotive work where compressor access is standard.

Who Should Avoid?

Without a substantial compressor (minimum 15 CFM at 40 PSI), these guns won’t perform properly. Stick to turbine systems if you don’t have adequate compressor capacity.

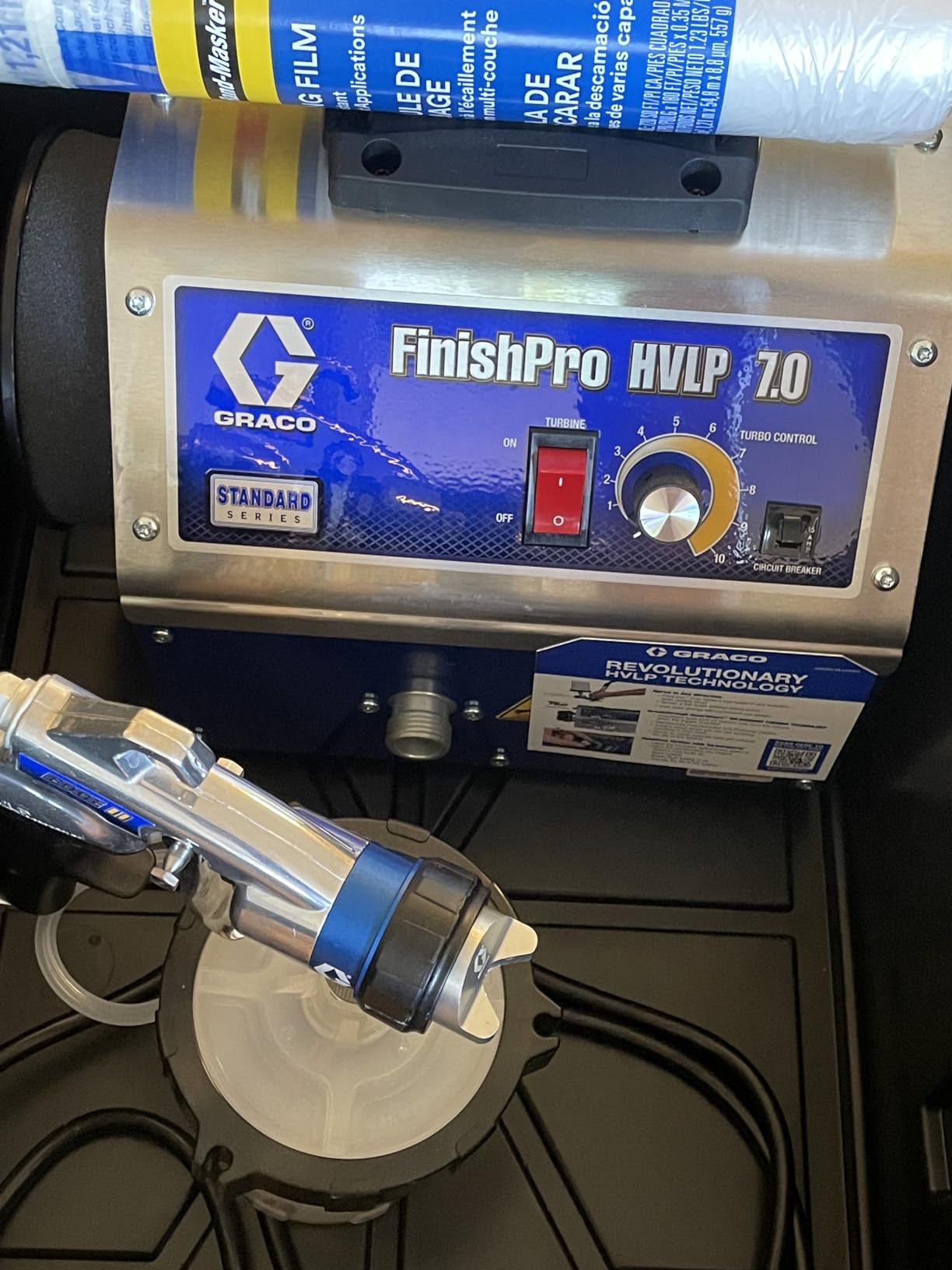

9. Graco FinishPro 7.0 Standard – Best Mid-Range Professional

The Graco FinishPro 7.0 Standard brings professional-grade performance at a more accessible price point than the ProContractor series. With 10 PSI from a 4-stage TurboForce turbine, this system delivers serious power for fine finish work.

The included #3 needle (1.3mm) is ideal for lacquers, stains, enamels, epoxies, urethane, and varnish. Graco’s one-click needle change system makes swapping sizes quick and tool-free.

Graco’s FlexLiner bag system carries over from the premium models. Being able to spray in any direction without spillage is a feature you won’t want to give up once you’ve used it.

The EDGE II gun features 75% lighter trigger pull than the competition. After a full day of spraying, your index finger will notice the difference.

At 18 pounds, this is the lightest Graco in our roundup. The 20-foot Super-Flex hose provides adequate reach for most residential projects.

Who Should Buy?

Serious DIYers and professionals who want Graco quality without the ProContractor price tag will find excellent value here.

Who Should Avoid?

If you need the extended features of the ProContractor series (SmartStart, FlexLiner bags, longer hose), consider stepping up to the 9.5.

10. Titan Capspray Maxum II – Best Standalone Gun

The Titan Capspray Maxum II is a standalone gun designed to work with existing turbine systems. This professional-grade gun boasts 15% better atomization than competitors, which translates to finer finishes and less material waste.

The stainless steel needle and nozzle provide long-term durability. After using guns with brass components that corroded from waterborne paints, I appreciate stainless’s chemical resistance.

Titan’s dual-pivot trigger is a genuine innovation. The two-stage design reduces trigger pull effort by about 30%, which matters during long spray sessions.

Solvent-proof Teflon seals prevent the swelling that plagues guns with rubber or plastic seals. This attention to detail explains why professional furniture refinishers swear by Titan equipment.

The 48-ounce cup provides excellent capacity, and the multi-position swiveling pick-up tube lets you spray at various angles until the cup is nearly empty.

Who Should Buy?

If you own a turbine system and want to upgrade your gun, or if you need a second gun for quick color changes, the Maxum II is an excellent investment.

Who Should Avoid?

This isn’t a complete system. You’ll need a compatible turbine or air source to operate this gun.

Understanding HVLP Technology

HVLP stands for High Volume Low Pressure, a technology that uses a large volume of air at low pressure to atomize coatings into a fine, controlled spray. This approach delivers superior transfer efficiency with up to 65% of material reaching the surface compared to 30% with conventional spray guns.

The turbine motor is the heart of an HVLP system. Each stage of the turbine adds pressure and heat management. More stages mean steadier output, less paint thinning, and better performance with thick materials like latex paints.

Turbine Stage Comparison

Stage Count	PSI Output	Best For	Paint Thinning Required
2-Stage	2.5-5 PSI	Stains, lacquers, thin finishes	15-25%
3-Stage	6.5-7 PSI	Waterborne coatings, polyurethane	10-20%
4-Stage	9-10 PSI	Thick clears, light latex	5-15%
5-Stage	10+ PSI	Unthinned latex, primers	0-10%

Buying Guide for HVLP Spray Guns

Choosing the right HVLP spray gun means matching the tool to your specific projects, materials, and experience level. After testing these systems extensively, I’ve identified the key factors that actually matter in real-world use.

Nozzle Size Selection Guide

The fluid tip or nozzle size determines what materials you can spray effectively. Using the wrong size leads to frustration and poor results.

Material Type	Recommended Tip Size	Notes
Lacquer, Shellac	1.0mm – 1.2mm	Thin materials need small tips
Stains, Varnish	1.2mm – 1.4mm	Most common all-purpose size
Polyurethane	1.3mm – 1.5mm	Waterborne may need larger tip
Enamel, Oil-based Paint	1.4mm – 1.6mm	Medium viscosity
Latex Paint	1.8mm – 2.2mm	Requires thinning or 4+ stage turbine

Solving for Thick Materials: Choose Higher Stages

Thick latex paints and bonding primers demand higher pressure for proper atomization. A 2-stage turbine forcing thick material creates orange peel and clogging. Step up to at least a 4-stage system for heavy coatings.

Solving for Overspray: Consider Non-Bleed Guns

Non-bleed guns only release air when you pull the trigger, reducing cloud formation and material waste. This feature matters most when working in confined spaces or with expensive coatings.

Solving for Fatigue: Check Weight and Balance

Handheld units weigh 3-4 pounds while turbine guns weigh 2-3 pounds. But you’ll hold a turbine gun for hours while the handheld rests on the bench. Bottom feed cups distribute weight differently than gravity cups.

How to Use an HVLP Spray Gun In 2026?

Proper technique matters more than equipment when it comes to achieving professional finishes. Here’s the process I’ve refined through hundreds of projects.

1. Prepare your material: Strain paint through a cone filter to remove debris. Check viscosity with the included cup and thin according to manufacturer guidelines.
2. Test spray pattern: Spray cardboard to verify fan width and material flow. Adjust air and fluid controls until the pattern is even with no heavy edges.
3. Maintain proper distance: Hold the gun 6-8 inches from the surface. Too close creates runs, too far causes dry spray and poor adhesion.
4. Overlap each pass 50%: Each stroke should overlap the previous one by half its width. This ensures even coverage without stripes.
5. Keep the gun perpendicular: Maintain a 90-degree angle to the surface. Tilting the gun causes uneven thickness and runs.
6. Move at consistent speed: Fast strokes leave dry patches, slow strokes create runs. Find a steady pace and maintain it.

Cleaning and Maintenance

Proper cleaning extends your spray gun’s life and prevents frustrating clogs mid-project. I learned this the hard way after neglecting cleanup and replacing a clogged needle.

Cleaning Steps

1. Empty remaining material: Pour unused coating back into the can. Never leave material in the cup overnight.
2. Flush with appropriate solvent: Water for waterborne coatings, mineral spirits for oil-based. Run through the gun until clear solvent emerges.
3. Disassemble the gun: Remove the fluid nozzle, air cap, and needle according to your manual. Clean each part with solvent and a soft brush.
4. Check the filters: Most guns have filters at the cup and gun body. Clean or replace regularly.
5. Lubricate moving parts: Apply a drop of lightweight oil to the needle and air cap threads before reassembly.
6. Store properly: Keep the gun in its case or a clean, dry area. Never hang the gun by the hose.

Troubleshooting Common Issues

Even experienced sprayers encounter problems. Here are solutions to the most common issues I’ve faced over the years.

Problem	Likely Cause	Solution
Orange peel texture	Insufficient atomization	Increase air pressure, thin material, or move closer
Runs and sags	Too much material	Reduce fluid flow, move faster, or thin material
Dry spray, rough texture	Too much air or distance	Reduce pressure, move closer, or add reducer
Clogging, spitting	Debris or dried material	Clean gun, strain material, check filters
Tails on pattern edges	Worn air cap or low pressure	Replace air cap or increase air pressure
Fan won’t adjust	Clogged air cap holes	Clean air cap with solvent and soft brush

Frequently Asked Questions

Final Recommendations

After testing these 10 HVLP spray guns across dozens of projects, the right choice depends on your specific needs and budget.

Professionals and serious woodworkers should invest in the Graco FinishPro 9.5 ProContractor for its unmatched power and versatility. The 10 PSI output and SmartStart technology justify the investment through time saved and superior results.

For dedicated DIYers making the jump from Wagner-quality equipment, the Fuji Mini-Mite 4 Platinum offers professional performance at a more accessible price. The 9 PSI output handles most materials with minimal thinning.

Beginners and occasional users will find excellent value in the Wagner Control Spray Max. It requires practice and patience, but delivers impressive results once you master proper thinning and technique.

Whichever system you choose, remember that technique matters as much as equipment. Practice on scrap material, maintain your equipment properly, and your finishes will improve with each project.
